SMTWGM4060CTJ with Thread M4 6 mm with Pickpad

SKU: 100-203
Category: SMTWGM Series kundenspezifisch

Surface Mount Nuts / Fasteners for PC boards

Prices visible after login

Delivery time: ca. 7 weeks (DE - int. shipments may differ)

Pcs/Reel

Please note the minimum purchase quantity of 500 Pcs/Reel.

Please note the permissible order quantity of 500 Pcs/Reel.

Application

Whether a fan is to be mounted on the PCB or the PCB itself is to be installed in a housing, threaded supports such as nuts or spacer bushes are required. In many cases these have to be mounted in a separate operation. The threaded carriers from Samytronic convince with excellent quality and favorable Prices.

Ideal for machine placement

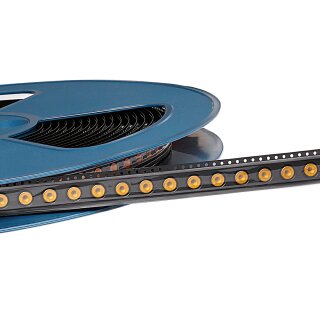

The ST threaded carriers are components that have been specially developed for SMT applications and components. Since the threaded nuts or sockets are supplied in convenient, machine-compliant tape and reel packaging, they can be machine assembled directly in the assembly process onto pads pre-printed with solder paste. In the reflow oven, the threaded carrier bonds to the PCB without destroying the PCB, as might be the case with press-fit. Therefore, the threaded carriers are optimally suited for use in industrial electronics.

Great Variation

Threaded supports or bushings can be supplied in various heights and diameters, with or without thread. Basic material is steel or copper alloy as standard. Surface tin plated or nickel plated. ROHS compliant.

If you have any questions or inquiries about developments, please feel free to contact us.

PDF

Datenblatt / Datasheet

SMTWGM4060MTJ

Datenblatt / Datasheet

Shipping weight:	0,0024 kg
Item weight:	0,0020 kg

Product safety information

Manufacturer information:

SamyTronic GmbH
Flensburger Str. 26
33605 Bielefeld
Deutschland
